CellarPro 3200VSx-ECX Cooling Unit Cooling System custom wine cellar cooling and refrigeration
CellarPro 3200VSx-ECX Cooling Unit Cooling System installed example for large wine cellars

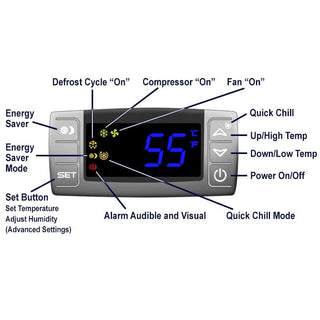

CellarPro 3200VSx-ECX Cooling Unit Cooling System control panel
CellarPro 3200VSx-ECX Cooling Unit Cooling System installed example close up
CellarPro 3200VSx-ECX Cooling Unit Cooling System label & specs

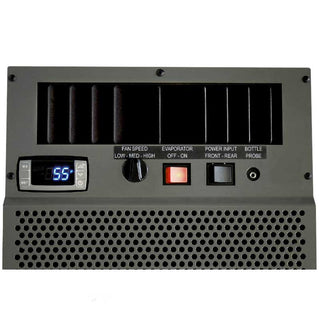

CellarPro 3200VSx-ECX Cooling Unit Cooling System control panel closes up

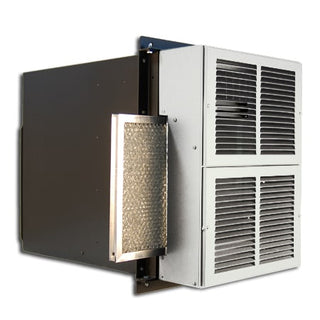

CellarPro3200VSx-ECX Cooling Unit Cooling System rear vent view wine cellar cooling

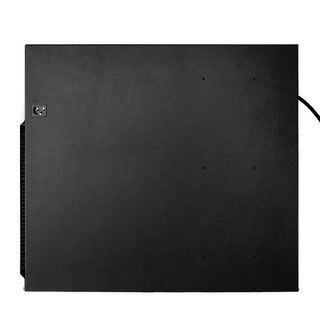

CellarPro 3200VSx-ECX Cooling Unit Cooling System side view
CellarPro 3200VSx-ECX Cooling Unit Cooling System custom wine cellar cooling and refrigeration

3200VSx-ECX Cooling Unit by CellarPro Cooling Systems

Typically Ships Within 2-3 Weeks.
$4,395.00 USD
?
Add this option if using the bottle probe and you need to add up to 25ft of cord length.
?
Add this option if using the bottle probe and you need to add up to 50ft of cord length.
?

This option is strongly recommended for installations where the unit and its built-in display/control panel is not visible within the wine cellar. This panel will allow you to monitor and adjust unit settings from the location of your choice and is hard-wired to the unit (10 feet of wiring included – please contact us after ordering if you require extra wiring length)

?
Add this option if the unit's fresh air intake will be below 20°F.
?
This option is strongly recommended for the most accurate temperature measurement and is absolutely necessary when the unit is ducted into the cellar. The probe can either measure air temperature or liquid temperature inside a bottle. The probe end will cork a wine bottle to blend into your cellar. This item comes with 10 feet of cord.
?
Add this option if ducting the cold side of the unit from an adjacent space but you will provide your own 8" insulated ducting material. Maximum 25ft of ducting for each run. Ducting hood adds 9" in height to the front of the unit. Hoods are insulated and suitable for high humidity environments.
?
Add this option if ducting the cold side of the unit from an adjacent space and you’d like 2 x 25ft runs of insulated flexible ducting included.
?
Add this option and never order replacement filters again. This aluminum filter can be cleaned with steam or hot water. Please note that these filters were not designed for marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect against corrosion that is common in coastal regions.
?
Add this option if you want to connect your cooling unit to an Ecobee Pro thermostat (thermostat not included). Up to 10 feet of wiring is included. If you require more than 10 feet, please include a note with your order with your desired length. Unless your thermostat has a separate probe, it will need to be installed within the cooled wine cellar environment. This upgrade is not compatible with the CellarPro bottle probe add-on.
?
Add this option if you want to connect your cooling unit to a Nest or Honeywell thermostat (thermostat not included). Up to 10 feet of wiring is included. If you require more than 10 feet, please include a note with your order with your desired length. Unless your thermostat has a separate probe, it will need to be installed within the cooled wine cellar environment. This upgrade is not compatible with the CellarPro bottle probe add-on.
Shipping calculated at checkout

Have questions? Contact Us or Book an Appointment with a specialist.

Description Desc.
Specifications & Installation Specs
Shipping Information Shipping
Warranty Details Warranty
Configuration Options
IMPORTANT: Please be sure to review the add-on options above to confirm you have all accessories necessary for your particular installation. Many are factory-installed and difficult to accommodate as a separate purchase/installation.

The CellarPro 3200VSx-ECX self-contained, through-wall wine cellar cooling unit is intended for mounting through an exterior wall and includes a cover to protect the rear of the unit from the elements. It is robust with extra-large coils, but quiet, thanks to its upgraded EC fan. Choose from variable fan speeds: turn it to high for maximum cooling power or low for the ultimate in quiet operation.

An in-built condensate management system limits the necessity to connect to a drain line. Audible and visual alarms alert you to maintenance and operation issues, providing peace of mind that your wine collection is property protected.

This unit is designed to install between standard studs but also has the option for front ducting with the addition of a ducting kit or hood. This model is intended for through-exterior-wall installation and can be front ducted to the wine cellar . If you wish to install through an interior wall, please choose the CellarPro 3200VSi-ECX.

Specifications & Installation

  • Cooling Capacity
  • - Low Fan Speed: 2487 BTUH at 55°F
  • - Medium Fan Speed: 2876 BTUH at 55°F
  • - High Fan Speed: 3040 BTUH at 55°F
  • Dimensions
  • 14 1/2" w x 27 3/5” d x 19 7/10”h
  • Weight
  • 140 lbs
  • Power/Rating
  • 115V AC / 60 Hz
  • Compressor Amps:
  • - Startup (LRA): 30 Amps
  • - Unit Amp Rating: 9.3 Amps (high fan speed)
  • - Compatible with Dedicated 15-Amp Circuit
  • - Total Watts: 500 (medium fan speed)
Owners Manual new window Front/Cold Side Ducting Cut Sheet new window Dimensions Cut Sheet new window Framing Diagrams new window

Shipping Information

Orders of this item are typically shipped anywhere from 3 - 10 business days from the date of order. If you would like a more specific estimate, please contact us.

Smaller refrigeration units will be shipped by common carrier such as Fedex or UPS. Larger refrigeration units or systems will be shipped on a pallet via an LTL freight carrier and delivered curbside with a power tailgate. Shipping may take anywhere from 1 - 2 weeks, depending on your location.

Please note: If this unit is on backorder or subject to longer lead times, it will be noted at the top of the page, below the product title.

Warranty Details

This product is warrantied by Cellar Pro Cooling Systems.

For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.

For all products covered by the terms of this warranty, CellarPro will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to CellarPro.

All service provided by CellarPro under the above warranty must be performed by CellarPro or a designated repair facility unless otherwise specified by CellarPro. Purchaser is responsible for shipping the wine cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the wine cooling unit from the wine cellar.

The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or by any cause beyond the control of CellarPro, shall not be considered defects in material or workmanship and are not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.

To receive parts and/or service and the name of a CellarPro designated repair facility nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by calling us at 1.877.726.8496.



Configuration Options

View Configuration Diagrams



  • CellarPro 3200/4200 VSi cooling units are self-contained and fully-charged. They are designed to be installed through-the-wall or can be front or rear ducted.
  • 3200/4200 VSi units can be located remotely from the cellar with the addition of front ducting (see add-on options above). With a front ducting hood or kit, this unit can be ducted up to 50 equivalent feet away from the cellar and requires 8 inch (or greater) ducting from start to end.
  • 3200/4200 VSi units can be rear ducted if the space on the other side of the wall its installed through is not suitable for ventilation. Instead, direct the air to another space by purchasing the rear ducting hood or kit add-on. 3200/4200 VSi cooling units must have fresh air intake without interference from the unit's hot air exhaust.
  • When calculating equivalent feet, each 90-degree turn is equal to 8 linear feet.
  • For installations where the unit is not inside the cellar, we offer a remote control and display kit which is wired to the cooling unit and can be placed inside or outside of the cellar.
  • If the fresh air intake (on the hot side) will receive air below below 40°F, you will require a compressor heater (see add-on options above).
  • If the fresh air intake (on the hot side) will pull air below 20°F, down to -20°F, you must add both the compressor heater and fan cycling switch (see add-on options above).
  • The front of the cooling unit should never be situated in an area that will get below 32°F.
  • This unit must always be installed and operated in an upright position.
