3200VEi Cooling Unit by CellarPro Cooling Systems

Typically Ships Within 5 Business Days.
$3,495.00 USD
?
Add this option if using the bottle probe and you need to add up to 25ft of cord length.
?
Add this option if using the bottle probe and you need to add up to 50ft of cord length.
?
Add this option if the units fresh air intake will be as low as 20°F.
?
Add this option if the units fresh air intake will be below 20°F.
?

This option is strongly recommended for installations where the unit and its built-in display/control panel is not visible within the wine cellar. This panel will allow you to monitor and adjust unit settings from the location of your choice and is hard-wired to the unit (10 feet of wiring included – please contact us after ordering if you require extra wiring length)

?
This option is strongly recommended for the most accurate temperature measurement and is absolutely necessary when the unit is ducted into the cellar. The probe can either measure air temperature or liquid temperature inside a bottle. The probe end will cork a wine bottle to blend into your cellar. This item comes with 10 feet of cord.
?
Add this option if ducting the hot side of the unit to another space but you will provide your own ducting material (note: if ducting fresh air intake from outdoors, add the compressor heater/compressor heater + fan cycling switch option as well). Maximum 25 ft of ducting for each run.
?
Add this option if ducting the hot side of the unit to another space and you’d like 2 x 25ft runs of insulated flexible ducting included (note: if ducting fresh air intake from outdoors, add the compressor heater/compressor heater + fan cycling switch option as well).
?
Add this option and never order replacement filters again. This aluminum filter can be cleaned with steam or hot water. Please note that these filters were not designed for marine exposure (within 5 miles of the ocean). In these environments, you will need an applied coating, such as Insitu®, to protect against corrosion that is common in coastal regions.
?
Add this option if you want to connect your cooling unit to an Ecobee Pro thermostat (thermostat not included). Up to 10 feet of wiring is included. If you require more than 10 feet, please include a note with your order with your desired length. Unless your thermostat has a separate probe, it will need to be installed within the cooled wine cellar environment. This upgrade is not compatible with the CellarPro bottle probe add-on.
?
Add this option if you want to connect your cooling unit to a Nest or Honeywell thermostat (thermostat not included). Up to 10 feet of wiring is included. If you require more than 10 feet, please include a note with your order with your desired length. Unless your thermostat has a separate probe, it will need to be installed within the cooled wine cellar environment. This upgrade is not compatible with the CellarPro bottle probe add-on.
Shipping calculated at checkout

Have questions? Contact Us or Book an Appointment with a specialist.

Description Desc.
Specifications & Installation Specs
Shipping Information Shipping
Warranty Details Warranty
Configuration Options
IMPORTANT: Please be sure to review the add-on options above to confirm you have all accessories necessary for your particular installation. Many are factory-installed and difficult to accommodate as a separate purchase/installation.

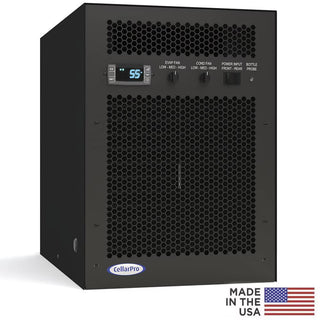

The CellarPro 3200VEi Cooling Unit (P/N 36748) is part of CellarPro’s value-engineered VE Series, delivering reliable cooling performance at a more accessible price point. It offers the same core functionality as the VS Series, but with fewer features—making it a practical option for those seeking efficiency and value without added complexity.

Designed for wine cellars up to approximately 800 cubic feet (properly insulated without glass, if you have glass, request a thermal load calculation), the 3200VEi maintains stable temperature and humidity, even in ambient conditions up to 110°F. Its high-output compressor and oversized coils help ensure consistent conditions to properly preserve your wine collection.

Equipped with independent variable-speed fans on both the cold and hot sides, this unit allows you to balance performance and noise. You can adjust fan speeds for maximum cooling power or quieter operation depending on your space and preferences.

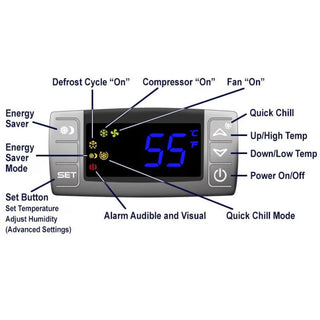

Built with durable, commercial-grade components, the unit also features energy-saving modes, automatic defrost, and a user-friendly digital control panel with LED display. Quiet operation, low vibration, and built-in alerts make it a dependable and easy-to-manage solution for residential and light commercial cellars.

Specifications & Installation

  • Cooling Capacity
  • 3040 BTUH at 55°F
  • Sound Measurement
  • 66 dBA
  • Dimensions
  • 14 1/8w x 24 1/4d x 19 5/8h (in)
  • Weight
  • 93 lbs
  • Power/Rating (Common dedicated 15-amp circuit is required to power the unit)
  • 115V AC / 60 Hz
  • Compressor Amps:
  • - Startup (LRA): 30.0 Amps
  • - Unit Amp Rating: 7.7 Amps
  • - Total Watts: 650 Watts
Owners Manual new window Configuration Options new window Framing Diagram new window Installation Diagrams new window As Ducted new window Cut Sheet new window Spec Sheet new window

Shipping Information

Orders of this item are typically shipped anywhere from 3 - 10 business days from the date of order. If you would like a more specific estimate, please contact us.

Smaller refrigeration units will be shipped by common carrier such as Fedex or UPS. Larger refrigeration units or systems will be shipped on a pallet via an LTL freight carrier and delivered curbside with a power tailgate. Shipping may take anywhere from 1 - 2 weeks, depending on your location.

Please note: If this unit is on backorder or subject to longer lead times, it will be noted at the top of the page, below the product title.

Warranty Details

This product is warrantied by Cellar Pro Cooling Systems.

For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.

For all products covered by the terms of this warranty, CellarPro will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to CellarPro.

All service provided by CellarPro under the above warranty must be performed by CellarPro or a designated repair facility unless otherwise specified by CellarPro. Purchaser is responsible for shipping the wine cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the wine cooling unit from the wine cellar.

The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or by any cause beyond the control of CellarPro, shall not be considered defects in material or workmanship and are not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.

To receive parts and/or service and the name of a CellarPro designated repair facility nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by calling us at 1.877.726.8496.



Configuration Options

View Configuration Diagrams

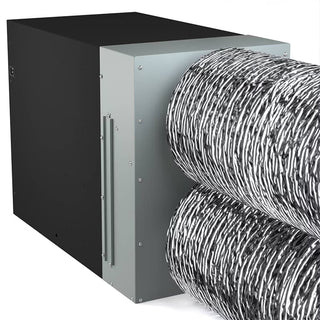

The CellarPro 3200VEi is a self-contained, pre-charged cooling unit designed for through-the-wall installation, fitting easily between standard wall studs.

For added convenience, an optional remote display kit is available. This wired controller connects to the unit and allows the digital display to be installed either inside or outside the wine cellar.

These units require proper fresh air intake at the rear. If there isn’t enough space to allow adequate airflow, a rear duct kit can be used to ensure proper ventilation.

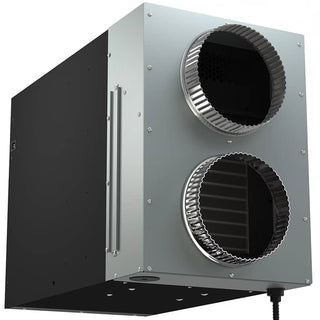

With the rear duct kit, the 3200VE Series can also be installed fully in the cellar. This setup allows both supply and return air to be ducted from the rear of the unit, with a maximum equivalent length of 100 feet (up to 50 feet per duct).

For installations in colder environments:

Below 40°F: a compressor heater (P/N 1727) is required
Between 20°F and -20°F: a fan-cycling switch (P/N 6972) is recommended in addition to the compressor heater

The front of the unit should not be exposed to temperatures below 32°F.

If you are replacing a 3200VSi unit with a rear duct hood, a new bottom panel for the duct hood will be required. Please contact us to add item L563 to your order.

The cooling unit must always be installed and operated in an upright position. Do not run the unit on its side or upside down.

Units are shipped on a pallet via standard freight with curbside delivery. Inside delivery is available for an additional fee.
