1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
1800XTSr Cooling Unit by CellarPro Cooling Systems
New options

1800XTSr Cooling Unit by CellarPro Cooling Systems

Typically Ships Within 5 Business Days.
$2,850.00 USD
?

Add the CellarPro Reusable Air Filter to your cooling unit and never buy disposable replacements again. Built with a durable aluminum frame and cleanable membrane, it easily traps dust and lint to protect your condenser coils. Maintenance is simple, just wash it using hot water or steam every few months.

Please note: This filter is not designed for marine exposure within 5 miles of the ocean; coastal environments require an added anti-corrosion coating like Insitu® for proper protection.

?
Recommended when the cooling unit will be installed in a wine cellar, a 1/2" ID condensate fitting and 8-foot clear vinyl tube allows overflow condensation to exit from the bottom of the cooling unit.
?
When the wine cooling unit will be installed in a wine cellar with hot, humid conditions, this 100W heating element is designed to burn off excess moisture. This must be combined with either the bottom or rear condensate drain line add-on.
?
This pair of clips can attach anywhere along the front of CellarPro 1800 cooling units and offer pre-drilled slots for bolting to the ceiling of your wine cellar. The ceiling must have appropriate framing/backing to carry the weight of the cooling unit.
?
Choose this add-on if you wish to plug in your unit inside the wine cellar. This modification has the cord exiting on the left side of the unit nearer the front. Without this modification, your power cord will exit the back of your unit to be plugged in outside of the wine cellar.
?
Recommended when the cooling unit will be installed in a wine cellar, a 1/2" ID condensate fitting and 8-foot clear vinyl tube allows overflow condensation to exit from the rear of the cooling unit.
?
Add this option if using the bottle probe and you need to add up to 25ft of cord length.
?
Add this option if using the bottle probe and you need to add up to 50ft of cord length.
?
Add this option if the units fresh air intake will be as low as 20°F.
?
Add this option if the units fresh air intake will be below 20°F.
?

This option is strongly recommended for installations where the unit and its built-in display/control panel is not visible within the wine cellar. This panel will allow you to monitor and adjust unit settings from the location of your choice and is hard-wired to the unit (10 feet of wiring included – please contact us after ordering if you require extra wiring length)

?

Replacement disposable polyester air filters.

?
This option is strongly recommended for the most accurate temperature measurement and is absolutely necessary when the unit is ducted into the cellar. The probe can either measure air temperature or liquid temperature inside a bottle. The probe end will cork a wine bottle to blend into your cellar. This item comes with 10 feet of cord.
?

Highly recommended for units that are not ducted on the hot side. The frame adheres instantly via magnetic strips. Add it now to protect your condenser coils from dust and avoid a separate shipping charge later.

Shipping calculated at checkout

Have questions? Contact Us or Book an Appointment with a specialist.

Description Desc.
Specifications & Installation Specs
Shipping Information Shipping
Warranty Details Warranty
Configuration Options

IMPORTANT: Please be sure to review the add-on options above to confirm you have all accessories necessary for your particular installation. Many are factory-installed and difficult to accommodate as a separate purchase/installation.

The CellarPro 1800XTSr cooling unit is engineered for built-in, cabinetry, or above-the-door applications that require a front-venting design. By repositioning the hot-side exhaust and the cold-side return to the front of the unit, it provides a seamless solution for installations where rear venting is not possible.

The CellarPro 1800XTSr cooling unit is designed to cool wine cellars up to 400 cubic feet, assuming the cellar is fully insulated and sealed with a vapor barrier and contains no glass. If your cellar design includes glass, please complete the thermal load calculation mentioned above to confirm this unit is suitable for your requirements.

Equipped with energy-efficient EC fans, this 1/4-ton nominal unit delivers superior cooling while maintaining optimal temperature and humidity. All 1800 Series units now feature the more environmentally friendly R-290 refrigerant, providing higher BTUH output with comparable noise levels.

All air-cooled units require fresh air intake to dissipate heat, which CANNOT come from the wine cellar/cabinet space—it must come from the area outside. Please ensure there is sufficient space in front of the unit for hot air to dissipate before mixing with the fresh air intake.

Specifications & Installation

  • Cooling Capacity
  • 1,886 Sensible BTUH at 55°F
  • Dimensions
  • 18" W x 19 1/2" D x 10 1/2" H
  • Weight
  • 70 lbs
  • Sound
  • 50 dBA
  • Power/Rating
  • 115V AC / 60 Hz
  • Compressor Amps:
  • Startup: 22.2 Amps
  • Running: 3.7 Amps
  • Total Watts: 440
  • - Requires Dedicated 15-Amp Circuit (surge protector recommended)
Owners Manual new window Spec Sheet new window Installation with Mounting Clips new window Cut Sheets new window Installation with a Support Shelf new window

Shipping Information

Orders of this item are typically shipped anywhere from 3 - 10 business days from the date of order. If you would like a more specific estimate, please contact us.

Smaller refrigeration units will be shipped by common carrier such as Fedex or UPS. Larger refrigeration units or systems will be shipped on a pallet via an LTL freight carrier and delivered curbside with a power tailgate. Shipping may take anywhere from 1 - 2 weeks, depending on your location.

Please note: If this unit is on backorder or subject to longer lead times, it will be noted at the top of the page, below the product title.

Warranty Details

This product is warrantied by Cellar Pro Cooling Systems.

For five years from the date of purchase, your CellarPro warranty covers the internal compressor if it proves to be defective in materials or workmanship. In addition, for two years from the date of purchase, your CellarPro warranty covers all parts and labor to repair or replace any components in the wine cooling unit that prove to be defective in materials or workmanship.

For all products covered by the terms of this warranty, CellarPro will repair or replace the original cooling unit with a new or refurbished cooling unit and, once replaced, the original cooling unit must be returned to CellarPro.

All service provided by CellarPro under the above warranty must be performed by CellarPro or a designated repair facility unless otherwise specified by CellarPro. Purchaser is responsible for shipping the wine cooling unit to and from CellarPro or to and from a designated repair facility, and for removing and reinstalling the wine cooling unit from the wine cellar.

The limited warranty applies only to wine cooling units purchased from the factory or an authorized dealer. Damage caused by others or by any cause beyond the control of CellarPro, shall not be considered defects in material or workmanship and are not covered by the warranty. The limited warranty does not cover any parts or labor to correct any defect caused by negligence, commercial use, accident or improper use, maintenance, installation, service or repair.

THE REMEDIES DESCRIBED ABOVE FOR EACH WARRANTY ARE THE ONLY ONES, WHICH CELLARPRO WILL PROVIDE, EITHER UNDER THESE WARRANTIES OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. CELLARPRO WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THESE WARRANTIES OR ANY OTHER WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights, which vary from state to state.

To receive parts and/or service and the name of a CellarPro designated repair facility nearest you, contact your CellarPro dealer. You may also contact CellarPro directly by calling us at 1.877.726.8496.



Configuration Options

View Configuration Diagrams
The CellarPro 1800XTSr is a self-contained, factory-charged cooling system designed for through-the-wall or above-ceiling installation applications. This model is not compatible with ducted installations.

For proper operation, the unit requires unobstructed airflow at the front, where both the fresh air intake and hot air exhaust are located. Adequate clearance must be provided in front of the unit to allow the exhaust heat to disperse and prevent it from being drawn back into the intake.

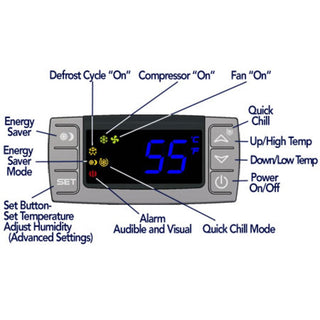

The control panel and digital temperature display are positioned on the right side of the unit. If that area will be difficult to access after installation, an optional remote display kit is available, allowing the display to be mounted either inside or outside the wine cellar.

The power cord can be configured to exit from either the rear or the right side of the unit, and this selection should be made before ordering.

An optional drain line can also be included at no additional cost.

To ensure reliable performance:

  • The front of the unit should not be exposed to temperatures below 40°F (4°C).
  • The bottom of the unit should not be exposed to temperatures below 32°F (0°C).
  • The cooling unit must always remain upright during installation and operation. It should never be operated on its side or upside down.
